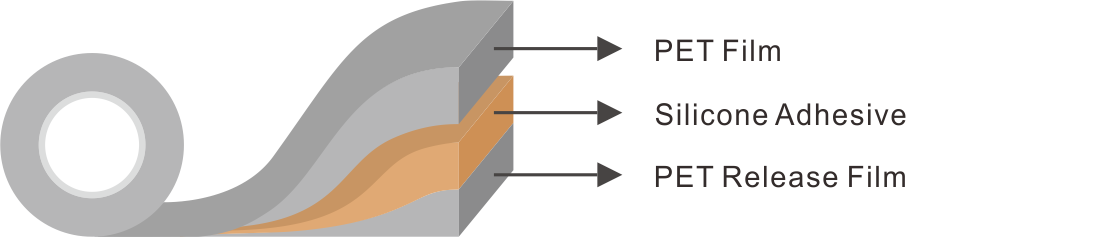

• Protective film using PET as carrier and coated with low adhesion removable silicone adhesive.
• Attached to smooth substrate, air-venting automatically
• Small adhesion build-up
• Clear removal, no residue or mark after released
• Bottom film or cover film for die cutting graphite sheet, ferrite sheet and PORON
• Cover film for OCA, ASF
|
Product |
Tape Thicknes (μm) |
Carrier Thickness (μm) |
Adhesion (gf/25mm) |
Colour |
Features |
|
GS551L |
55 |
50 |
2 |
Blue |
Conventional |
|
GS602L |
60 |
50 |
5 |
Blue |
|
|
GS604L |
60 |
50 |
16 |
Blue |
|
|
GS552S |
55 |
50 |
8 |
Clear |
Carrier surface anti-static |
|
GS603S |
60 |
50 |
11 |
Clear |
|
|
Remark : Adhesion could be customized per 0.5g/25mm |
|||||
