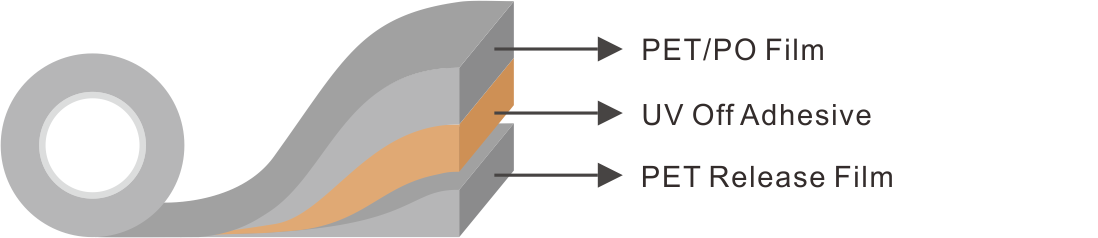

• Protective film using PET or PO as carrier and coated with UV off adhesive.
• High adhesion before UV exposure

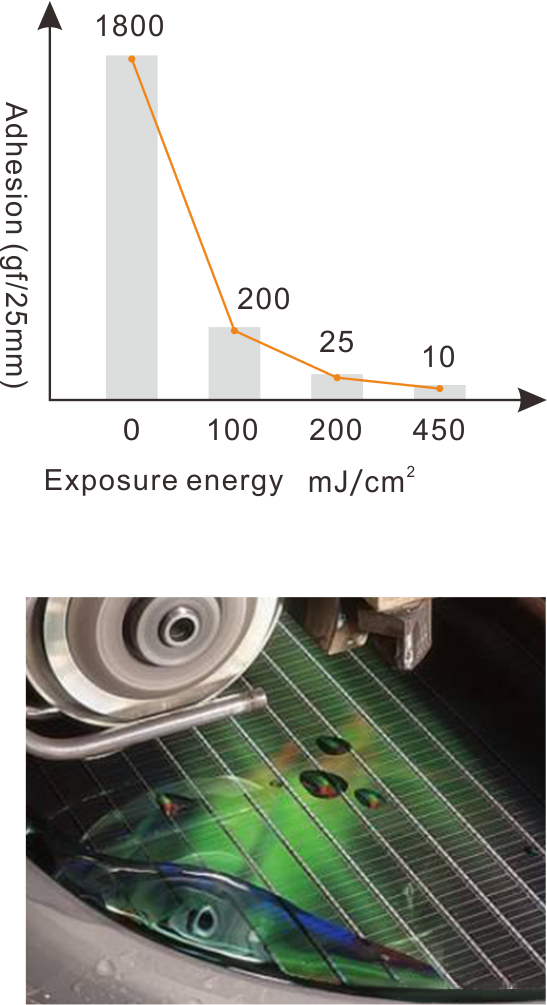

• Adhesion drops sharply after UV exposure, easy release
• Clean removal, no residue and mark
• Protect 3D glass during process and chemically enhanced treatment process
• Fixation of electronic parts like silicon wafer, ceramics and LED lamp head during cutting process
|
Product |
Thickness (μm) |
Carrier |
Adhesion (gf/25mm) |
Features / Applications |
|
|
After Exposure |
Before Exposure |
||||
|
UV095 |
95 |
PET |
1900 |
7 |
Cost-effective |
|
UV110 |
110 |
PET |
1100 |
6 |
|
|
UV130 |
130 |
PET |
2200 |
7 |
|
|
UV090H |
90 |
PO |
1300 |
25 |
Soft carrier, shock absorbing |
|
UV100H |
100 |
PO |
1600 |
30 |
|
|
Remark: thickness & carrier customizable, UV exposure ≥450mJ/cm 2, exposure time≥10s |
|||||
