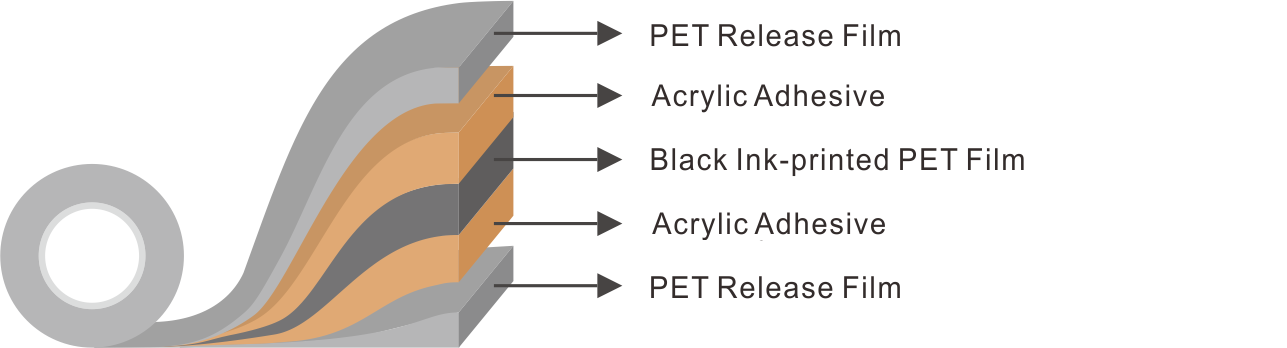

• Double sided black/white tape using special film as carrier and coated with high performance adhesive.
• Good heat resistance and anti-repulsion performance
• Use black & white film as carrier, high reflectivity in white side
• Prevent upper BEF (Brightness Enhancement Film) from deformation due to internal stress
• Fix LED of backlight and provide light shading
|
Product |
Thickness |
Adhesion (gf/25mm) |
Features / Applications |
|
|
White Side |
Black Side |
|||
|
7430BW |
30 |
850 |
800 |
Ultrathin |
|
7440BW |
40 |
1300 |
1200 |
|
|
7450BW |
50 |
1400 |
1300 |
Helps to mitigate internalstress, anti-warping |
|
7460BW |
60 |
1600 |
1500 |
|
|
7480BW |
80 |
2200 |
2000 |
Thicker, improved anti-warping performance |
|
Remark: Each tape has its reprocessed product, with which adhesion in thick release liner side around 900 gf/25mm (thickness customizable) |
||||
